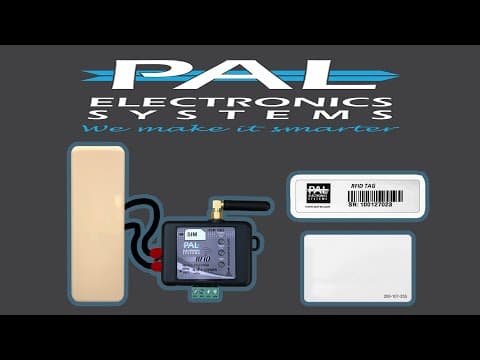

PAL UHF RFID
PAL Long Range FRID
Long-range UHF RFID vehicle-access kit with web-managed control, internal event logging, and support for up to 12,000 authorized users.
Specifications
Frequency:902-928 MHz
Voltage:12V DC / 1A
Part #:PALUHFKIT
Pricing:
Contact for Pricing
Applications
Parking Lot ManagementVehicle Access ControlAutomatic Weighing
Tags
paluhfkitpal long range rfiduhfrfidvehicle accessparkingpal cloud management
• Easy installation
• System control and management with simple web interface
• 12,000 authorized users
• Groups for access control by time, days, and dates
• Records at least 1,000 tag numbers in an internal log
• Long-range RFID identification for vehicle access
• 1 optical solid-state relay output
• 3 indication LEDs
• PAL cloud-management support through the web interface
• Product identity: PALUHFKIT / Smart Gate SG334GA / PAL long-range RFID kit
• Manual-backed UHF specs: 902-928 MHz operating frequency, 10 to 26 dBm adjustable RF power output, and up to 7 meter (23 feet) read distance depending on tags and environment
• Source conflict preserved: page says operating power 24V DC and GSM quad-band network, while the linked device manual specifies DC 12V / 1A power supply; structured voltage follows the device manual per source precedence
• Page-backed operational notes retained: 12,000 authorized users, at least 1,000 internal log entries, time/day/date access groups, and 1 optical solid-state relay output
• Installation notes from manual: antenna height should be about 1.5m to 2.5m, read cone is approximately 30 degrees, and antenna/sticker alignment should be as parallel as possible
• Manual relay/load detail: maximum output relay load 60V / 0.9A
• FCC ID from linked manual: 2AUD3-SG334G
• Page issue preserved: the page labels PALRFID-email-1.pdf as CUT SHEET, but that file is not a technical cutsheet and is attached only as an additional support file
• Web management notes from PAL web manual: portal login, device setup, history logs, audit logs, chart logs, timer events, time groups, organization sharing, and device tools are supported through https://portal.pal-es.com
Basic Information
Product Type:Card Reader, Access Control
Model:PALUHFKIT
SKU:PALUHFKIT
Status:active
Categories:PAL Cloud Management, UHF Long Range Readers
In Stock:Yes
Wireless/RF Specifications
Frequency:902-928 MHz
Read Range:Up to 7 m (23 ft)
Power Specifications
Voltage:12V DC / 1A
Backup Battery:No
Physical Specifications
Dimensions:500 x 200 x 26 mm
Card Reader Specifications
Supported Card Types:UHF RFID
LED Indicator:No
Buzzer/Alarm:No
Controller/System Specifications
Capacity:12,000 authorized users
Relay Outputs:1
Connectivity:WEB INTERFACE, GSM QUAD BAND 850/900/1800/1900 MHZ
Event Log Capacity:1,000
Input/Output Specifications
Output Type:1 optical solid state relay output
Lock Specifications
Lock Status Sensor:No
Contact Rating:Maximum output relay load 60V / 0.9A
Card Specifications
Waterproof:No
Additional Information
Certifications:FCC
