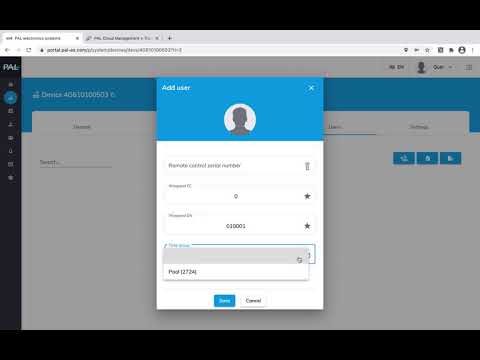

PAL Device Training
Pal Spider - Wiegand 26
Cloud-managed 4G Wiegand 26 controller with Bluetooth, one mechanical relay, one alert input, and support for virtual and physical credentials.
Specifications
Voltage:12-24 VDC
Part #:PALSPRECWIE
Pricing:
Contact for Pricing
Applications
Access ControlGate ControlDoor ControlCloud Management
Tags
pal spiderpalsprecwiewiegand 26cloud managementaccess control4g controllerbluetooth
• Works with any Wiegand 26 device including transmitters, cards, fobs, and RFID tags
• Open by proximity, app, dialing, Siri, Google Assistant, or external Wiegand 26 credentials
• App-based virtual credentials plus support for physical credentials
• Up to 60,000 users
• Cloud-based software through PAL web interface and app
• Bluetooth support for nearby-only and auto-open modes
• Real-time email and push notifications
• Programmable relay pulse width
• Timers, astronomical clock, and Excel import/export
• Mechanical relay suitable for maglocks and electric strikes
• Product identity: PALSPRECWIE / PAL Spider Wireless Wiegand 26 Controller
• Spider Wiegand variant from manual: 1 output relay (NO/NC), 1 input channel, D0/D1/GND Wiegand 26 input, 4G antenna, 2.4 GHz antenna, 433 MHz support
• Source conflict preserved: the 2023 cutsheet says up to 60,000 users, while the broader 2024 Spider manual comparison table says 20,000 max users for PALSPRECWIE; structured capacity follows the product-specific cutsheet and this conflict is preserved here
• Source conflict preserved: the cutsheet and quick start say 30mA maximum power consumption, while the manual says approximately 70mA average standby current; structured current preserves both values explicitly
• Manual-supported features: unlimited PAL Gate app users, 433 MHz support, Excel import/export, API integration, unlimited logs, programmable astronomical clock, and adjustable relay pulse width
• Manual wiring notes: use D0, D1, and Wiegand GND for external Wiegand devices; reader LED can be wired to NO-1 to correspond with relay
• Quick start package contents: PAL Spider device, 4G antenna, SIM, 433 MHz antenna
• Software portal: https://portal.pal-es.com
• Public demo login shown on source page is intentionally not structured here
Basic Information
Product Type:Controller, Access Control
Model:PALSPRECWIE
SKU:PALSPRECWIE
Status:active
In Stock:Yes
Power Specifications
Voltage:12-24 VDC
Backup Battery:No
Physical Specifications
Dimensions:2.08 x 3.15 in
Weight:3.06 oz
Operating Temperature:-4 to 158 F
Card Reader Specifications
Reader Mounting:External Wiegand 26 device support
Output Protocol:Wiegand 26
LED Indicator:No
Buzzer/Alarm:No
Controller/System Specifications
Capacity:60,000 users
Relay Outputs:1
Connectivity:4G, BLUETOOTH, 433 MHZ, WIEGAND 26
Input/Output Specifications
Input Type:1 input with real time email and push notifications
Output Type:1 mechanical relay (NO/NC)
Lock Specifications
Lock Status Sensor:No
Contact Rating:1A switching current, 2A carrying current, 30W / 62.5VA, up to 220VDC / 250VAC
Current Draw:30mA max (cutsheet/quick start); ~70mA average standby (manual)
Card Specifications
Waterproof:No
Additional Information
Warranty Period:24 Months
