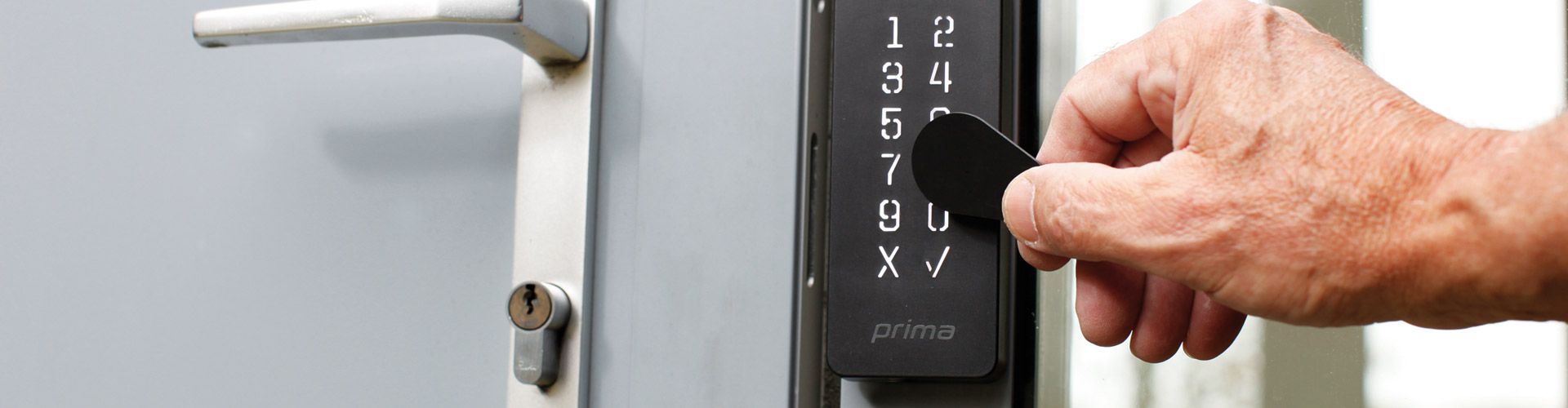

Prima Access Control
Prima access control hardware including door controllers, readers, keypads, and related system components.
Products (17)
View All Products →
Other Products
15 products
Prima Controller
Additional videos (4)
User Import Tool
Holiday Scheduling
Prima 1 Door Install
Prima Premier Certification
Documentation
Document type
Files in this type
Additional Files
Prima Card Converter
Converter and import tools require Microsoft Excel or a similar program.
Prima User Import
Converter and import tools require Microsoft Excel or a similar program.
Firmware
Converter and import tools require Microsoft Excel or a similar program.
USB Desktop Reader Firmware
Converter and import tools require Microsoft Excel or a similar program.
Nova Software Update (1/22/2016)
Converter and import tools require Microsoft Excel or a similar program.
Discovery Tool
Converter and import tools require Microsoft Excel or a similar program.
Prima Cloud demo
Username: ts · Password: 4PrimaAccess
Part PRIMA

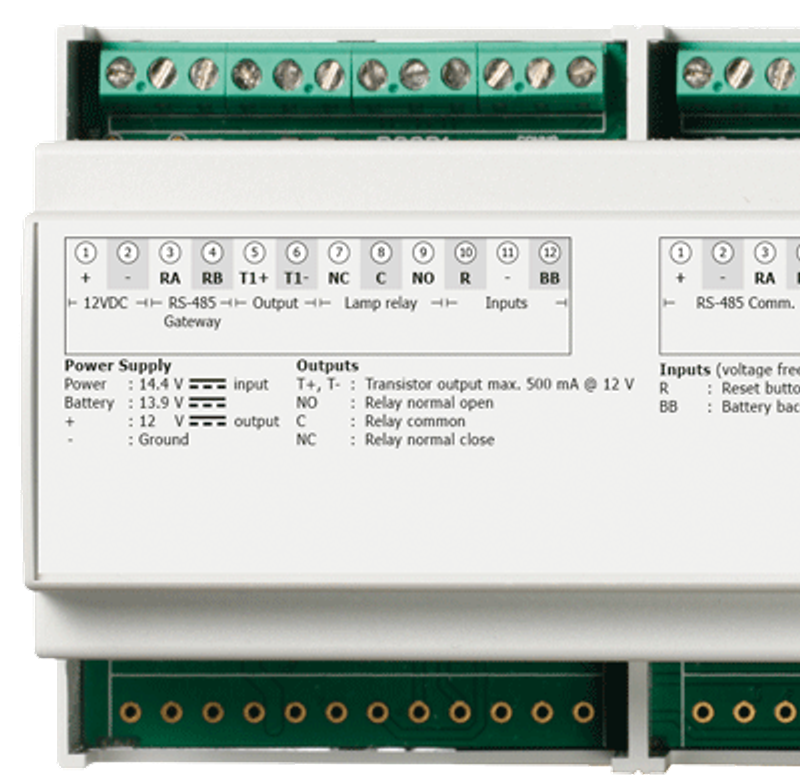

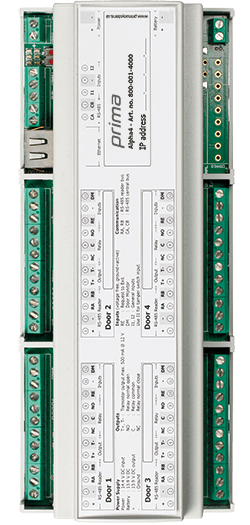

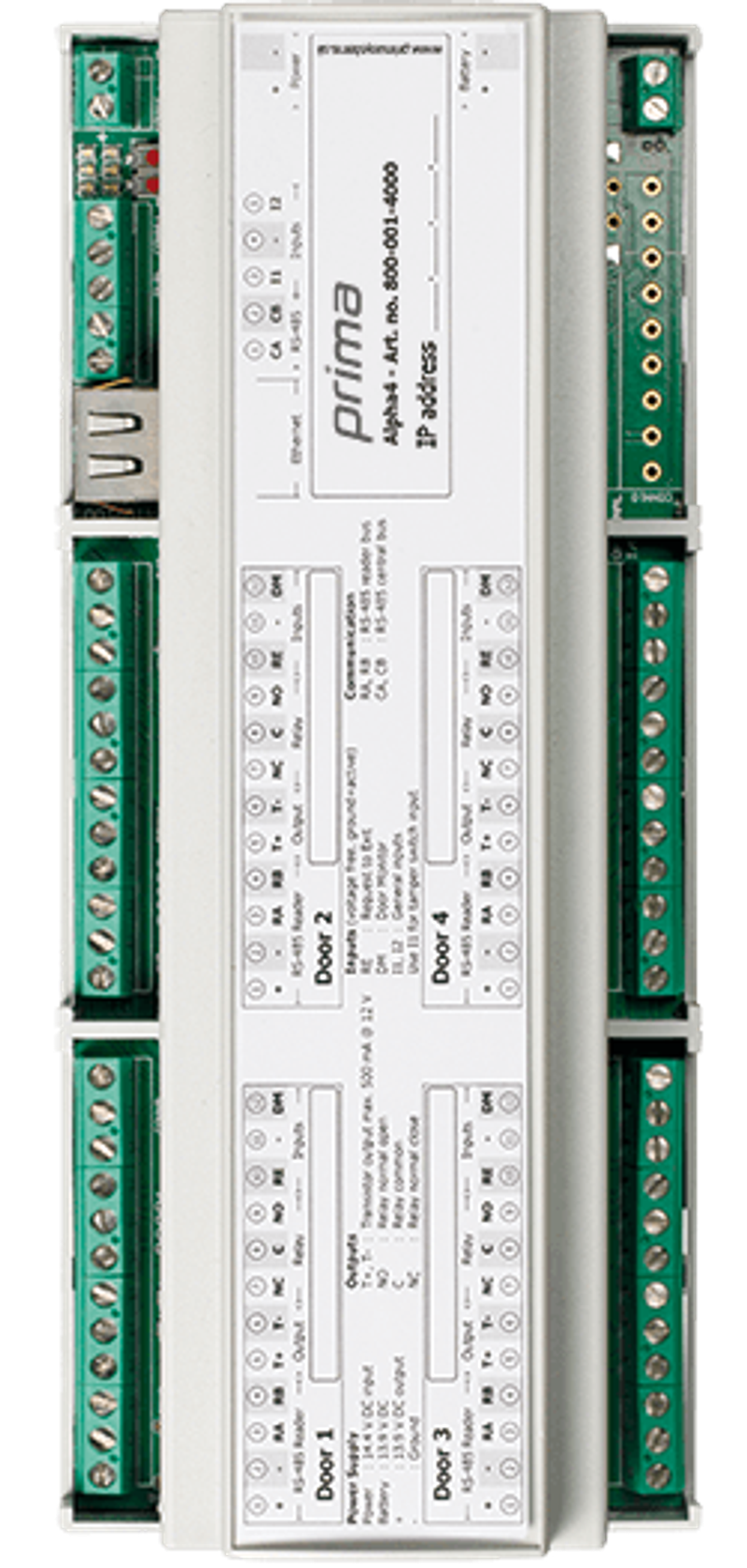

Prima Controller
- PoE or TCP/IP
- Online or Offline
- RS485 or Wiegand

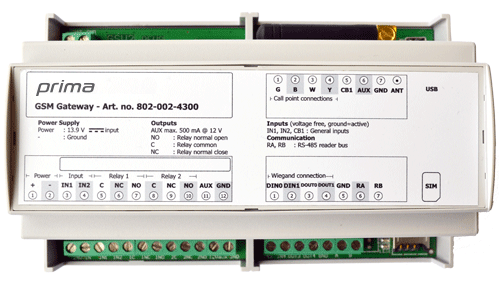

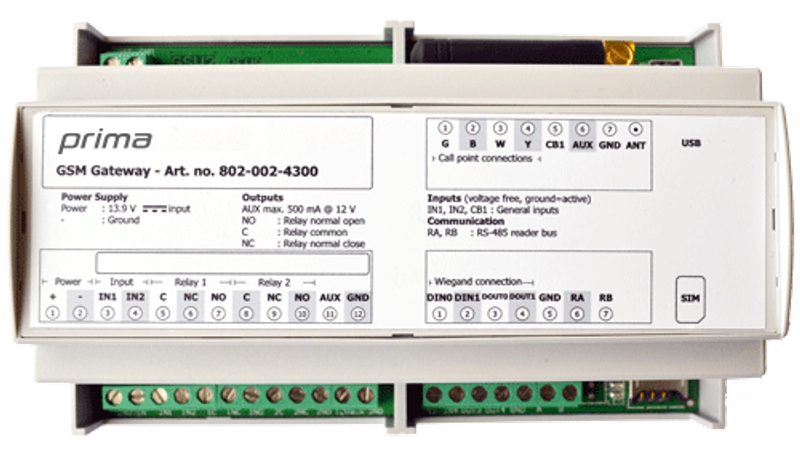

- GSM Gateway
Features
- No server needed
- Remote management (website or SMS text)
- Alarm integration
- Parking integration

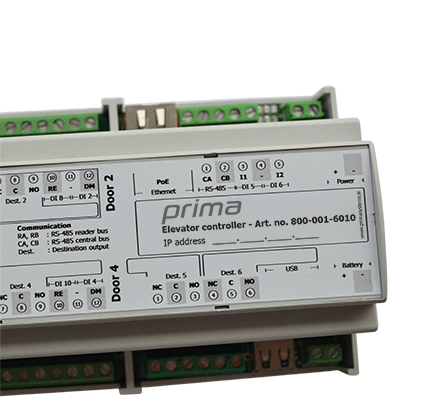

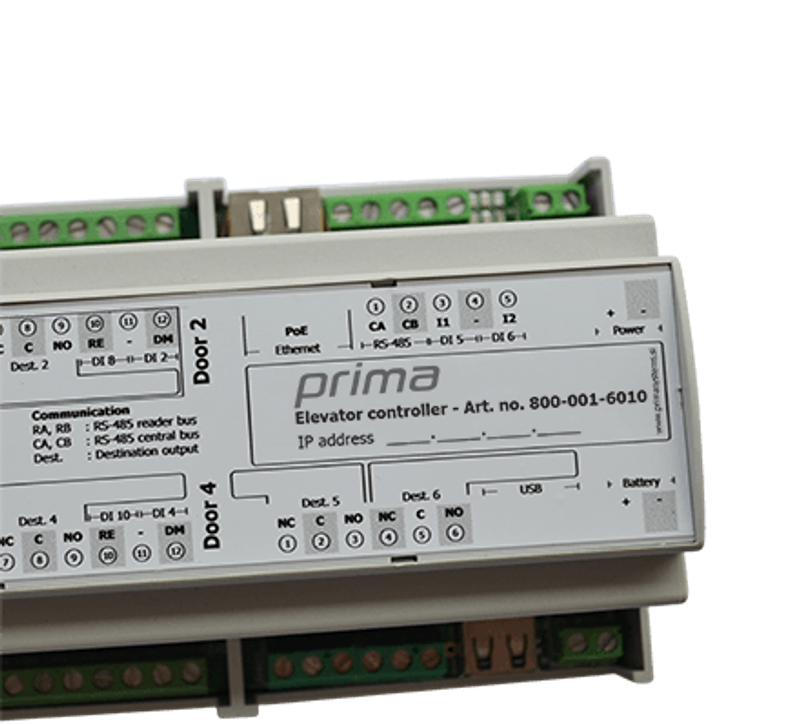

- Elevator integration
- 1 RS485 port / 1 Ethernet port / 1 USB port
- Power supply included
Specifications
Processor200MHz CPU with 64MB RAM
Memory512MB flash
Users5,000 (upgradeable to 100,000)
Event log1,000,000
Supply voltage14.4 VDC +/- 10%
With battery backup13.9 VDC and 14.6 VDC
Without external loads150mA at 14.4 VDC (2W)
Maximal consumption60W limit
PoE+up to 25W, IEEE 802.3at
Battery backup12 VDC, 2.1 Ah
Temperature−4 °F to 185 °F
Dimensions8-3/8 x 3-1/2 x 2-1/2 inches
Weight11.3 oz
Warranty2 years
