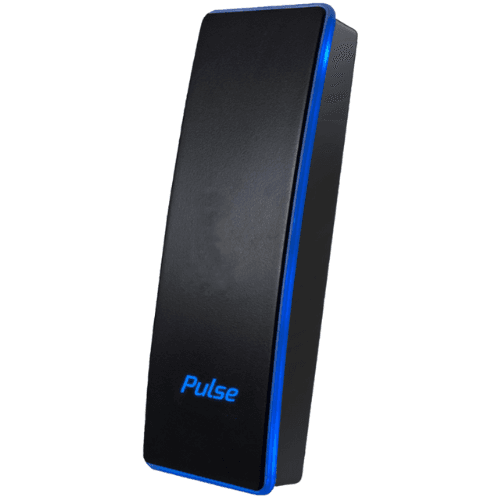

PRMP
Mullion-mount DESFire EV2 card reader with 26-bit Wiegand or OSDP output, RS485 support, and IP65 indoor/outdoor protection for high-security access control applications.
Specifications
Voltage:10-15V DC
Part #:PRMP
Pricing:
Contact for Pricing
Applications
Access ControlCard Reader
Tags
pulse high securityprmpmullion card readerdesfire ev2osdpwiegand
• Non-scratch surface
• MIFARE DESFire EV2 2K support
• Metal back plate
• Non-drop bottom screw
• Indoor and outdoor use
• Tamper protection
• Mullion card reader
• Part number on page and PDF: PRMP
• Product family description from PDF: Wiegand / RS485 mullion card reader
• Output from page/PDF: 26-bit Wiegand / RS485; the PDF also says option of 26-bit Wiegand or OSDP
• Credential technology from page: ISO14443A MIFARE DESFire EV2 2K
• Wiring distance from page/PDF: 492 ft using 22 AWG shielded cable
• Mounting from PDF: metal plate installs to wall with two or four screws depending on gang box used; cover clips to upper edge and secures with non-dropout screw
• Wiring from PDF: red +12VDC, black GND, green Data0, white Data1, yellow red LED control, blue green LED control, brown buzzer, orange tamper, purple doorbell, grey RS485A, yellow-green RS485B
• Tamper output from PDF: open collector, active low, max 100mA
• Doorbell output from PDF: open collector, +5VDC output up to 5mA
• Mobile credentials note from PDF: mobile credentials available using SynQ
• Source conflict preserved: the live page clearly presents PRMP as a mullion card reader with no keypad, while the PDF repeats stale keypad language such as touch sensor keypad, keypad bit burst, and keypad troubleshooting copied from the PKMP sheet; structured fields follow the page-backed reader-only identity
Basic Information
Product Type:Card Reader, Access Control
Model:PRMP
SKU:PRMP
Status:active
In Stock:Yes
Wireless/RF Specifications
Read Range:2-5 cm
Power Specifications
Voltage:10-15V DC
Backup Battery:No
Physical Specifications
Dimensions:5.625 x 1.75 x 0.875 in
Weight:5.75 oz
IP Rating:IP65
Operating Temperature:-22 to 158 F
Card Reader Specifications
Supported Card Types:MIFARE DESFire EV2 2K
Reader Mounting:Mullion Mount
Output Protocol:26-Bit Wiegand or OSDP / RS485
LED Indicator:No
Buzzer/Alarm:No
Lock Specifications
Lock Status Sensor:No
Current Draw:160mA max
Card Specifications
Waterproof:No
