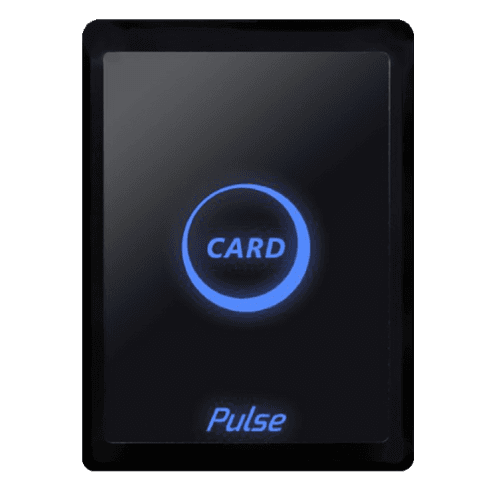

PRSP-H
Single-gang DESFire, HID, and EM card reader with 26-bit Wiegand or OSDP output, RS485 support, and IP65 indoor/outdoor protection for high-security access control applications.
Specifications
Voltage:10-15V DC
Part #:PRSP-H
Pricing:
Contact for Pricing
Applications
Access ControlCard Reader
Tags
pulse high securityprsp-hsingle gang card readerdesfirehidemosdpwiegand
• Non-scratch surface
• MIFARE DESFire, HID, and EM credential support
• Metal back plate
• Non-drop bottom screw
• Indoor and outdoor use
• Tamper protection
• Single gang reader
• Part number on page and PDF: PRSP-H
• Product family description from PDF: Wiegand / RS485 single gang card reader
• Output from page/PDF: 26-bit Wiegand / RS485; the PDF also says option of 26-bit Wiegand or OSDP
• Credential technology from page/PDF: MIFARE DESFire, HID, and EM
• Wiring distance from page/PDF: 492 ft using 22 AWG shielded cable
• Mounting from PDF: metal plate installs to wall with two or four screws depending on gang box used; cover clips to upper edge and secures with non-dropout screw
• Outdoor install note from PDF: protective film on the reader screen must be removed for outdoor installation
• Wiring from PDF: red +12VDC, black GND, green Data0, white Data1, yellow red LED control, blue green LED control, brown buzzer, orange tamper, purple doorbell, grey RS485A, yellow-green RS485B
• Tamper output from PDF: open collector, active low, max 100mA
• Doorbell output from PDF: open collector, +5VDC output up to 5mA
• Mobile credentials note from PDF: mobile credentials available using SynQ
• Source conflict preserved: the live page mostly supports the single gang reader identity but contains a stale feature line `Mullion Card Reader/Keypad`, while the URL, title, PDF heading, dimensions, and product image all support the single gang reader variant; structured fields follow the repeated single-gang identity
• Source conflict preserved: the PDF again repeats stale keypad language such as touch sensor keypad, keypad bit burst, and keypad troubleshooting copied from the `PKSP-H` sheet; structured fields remain reader-only
Basic Information
Product Type:Card Reader, Access Control
Model:PRSP-H
SKU:PRSP-H
Status:active
In Stock:Yes
Wireless/RF Specifications
Read Range:2-5 cm
Power Specifications
Voltage:10-15V DC
Backup Battery:No
Physical Specifications
Dimensions:4.5 x 3.25 x 0.75 in
Weight:5.75 oz
IP Rating:IP65
Operating Temperature:-22 to 158 F
Card Reader Specifications
Supported Card Types:MIFARE DESFire, HID Proximity, EM
Reader Mounting:Single Gang Mount
Output Protocol:26-Bit Wiegand or OSDP / RS485
LED Indicator:No
Buzzer/Alarm:No
Lock Specifications
Lock Status Sensor:No
Current Draw:160mA max
Card Specifications
Waterproof:No
