PKMP

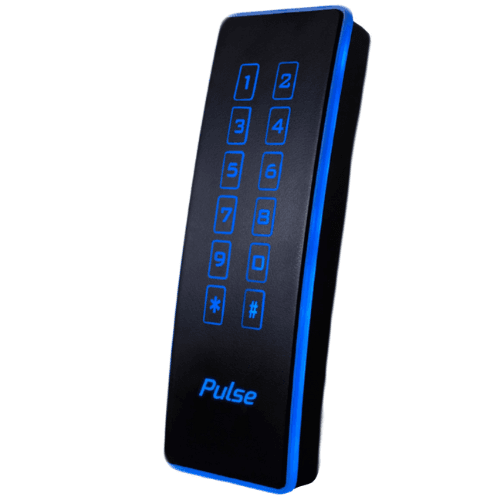

Mullion-mount touch keypad with integrated MIFARE DESFire card reader, 26-bit Wiegand or OSDP output, and IP65 indoor/outdoor protection for high-security access control applications.
Specifications
Voltage:10-15V DC
Part #:PKMP
Pricing:
Contact for Pricing
Applications
Access ControlCard ReaderKeypad Entry
Tags
pulse high securitypkmpmullion keypadcard readermifare desfireosdp
• Non-scratch surface
• MIFARE DESFire credential support
• Touch sensor keypad
• Metal back plate
• Non-drop bottom screw
• Indoor and outdoor use
• Tamper protection
• Mullion card reader and keypad
• Part number on page and PDF: PKMP
• Product family description from PDF: Wiegand / RS485 mullion keypad with card reader
• Output from PDF: option of 26-bit Wiegand or OSDP; keypad bit burst supports 4, 8, or 10 bits
• Credential technology from page/PDF: ISO14443A DESFire / MIFARE DESFire
• Wiring distance from page/PDF: 492 ft using 22 AWG shielded cable
• Mounting from PDF: metal plate installs to wall with two or four screws depending on gang box used; cover clips to upper edge and secures with non-dropout screw
• Wiring from PDF: red +12VDC, black GND, green Data0, white Data1, yellow red LED control, blue green LED control, brown buzzer, orange tamper, purple doorbell, grey RS485A, yellow-green RS485B
• Tamper output from PDF: open collector, active low, max 100mA
• Doorbell output from PDF: open collector, +5VDC output up to 5mA
• Mobile credentials note from PDF: mobile credentials available using SynQ
• Source cleanup: the page spec line says "26-Bit Wiegand / RS485 with 4, 8, or 10 bit burst," while the PDF clarifies that the output is 26-bit Wiegand or OSDP and the keypad burst options are 4, 8, or 10 bits; structured fields preserve the clarified PDF wording
Basic Information
Product Type:Keypad, Card Reader, Access Control
Model:PKMP
SKU:PKMP
Status:active
In Stock:Yes
Wireless/RF Specifications
Read Range:2-5 cm
Power Specifications
Voltage:10-15V DC
Backup Battery:No
Physical Specifications
Dimensions:5.625 x 1.75 x 0.875 in
Weight:5.75 oz
IP Rating:IP65
Operating Temperature:-22 to 158 F
Card Reader Specifications
Supported Card Types:MIFARE DESFire
Reader Mounting:Mullion Mount
Output Protocol:26-Bit Wiegand or OSDP / RS485 with 4, 8, or 10 bit keypad burst
LED Indicator:No
Buzzer/Alarm:Yes
Button/Key Specifications
Key Count:12
Backlight:Yes
Lock Specifications
Lock Status Sensor:No
Current Draw:160mA max
Card Specifications
Waterproof:No
