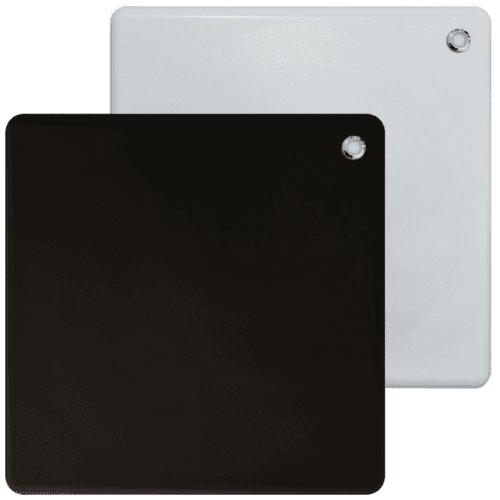

Dolphin DOLCWIUHF-ER902 Long Range UHF Reader
Specifications
Frequency:902-928 MHz
Voltage:12 VDC
Part #:DOLCWIUHF-ER902
Pricing:
Contact for Pricing
Applications
Vehicle Access ControlAccess ControlLogisticsParkingIndustrial Process Control
Available Colors
BlackWhite
Tags
uhflong range uhf readerdolcwiuhf-er902erone26-bit wiegandfcc certified
• Read range up to 60 feet
• 26 bit Wiegand output
• FCC certified
• Simple to install
• Indicator light on reader
• Available in black or white
• Adjustable RF output power
• Reader includes corresponding interface device with built-in 433.92 MHz radio receiver
• Part number: DOLCWIUHF-ER902
• Reader operating frequency range: 902-928 MHz
• Transmission type: FHSS
• Detection range in open space: manual less than 20 m; page/cutsheet market the product as up to 60 feet
• Rated power supply: 12 VDC
• Standby max current: 200 mA at 12 VDC
• Max current consumption: 1 A at 12 VDC
• Operating temperature: -4°F to 131°F
• Storage temperature: -40°F to 185°F
• Operating humidity: less than 95% RH at 77°F
• Protocol tag supported: ISO 18000-6C/6B
• RF output power: up to 33 dBm adjustable
• Polarization: circular
• Reader output: RS-485
• Reader dimensions: 12 x 12 x 3.15 in
• Reader IP class: IP65
• Weight: 4 lb 13 oz
• Interface receiver operating frequency: 433.92 MHz
• Built-in receiver supports 100 Erone Keeloq remote controls
• Receiver outputs: relay and Wiegand
• Wiegand protocols supported by interface: 26, 30, 44 bit
• Receiver memory capacity: 7580 tags and 100 remote controls
• Relays: 2 x 24 VA max 48VDC
• Relay operating modes: pulse, step, delayed
• Included credentials from cutsheet: V2 UHF sticker, UHF card, UHF card holder, dual protocol UHF and Mango card, UHF sticker, UHF hang tag, UHF license plate tag
• Manual source note: underlying manual uses AHU49 / ERONE family naming while the product page identity is DOLCWIUHF-ER902
Basic Information
Product Type:Card Reader, Access Control
Model:DOLCWIUHF-ER902
SKU:DOLCWIUHF-ER902
Status:active
Available Colors:Black, White
In Stock:Yes
Wireless/RF Specifications
Frequency:902-928 MHz
Read Range:Up to 60 ft
Wiegand Bits:26 bit
Power Specifications
Voltage:12 VDC
Backup Battery:No
Physical Specifications
Dimensions:12 x 12 x 3.15 in
Weight:4 lb 13 oz
IP Rating:IP65
Operating Temperature:-4 to 131 F
Card Reader Specifications
Supported Card Types:UHF
Output Protocol:Wiegand 26
LED Indicator:No
Buzzer/Alarm:No
Controller/System Specifications
Relay Outputs:2
Lock Specifications
Lock Status Sensor:No
Current Draw:Standby 200 mA at 12 VDC; Active 1 A at 12 VDC
Card Specifications
Waterproof:No
