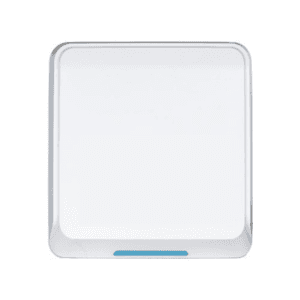

Mini UHF Reader
Discontinued mini UHF long-range reader with 900 MHz operation, 26-bit Wiegand output, 10-28VDC input, up to 30 foot read range, and IP66 weather resistance.
Specifications
Frequency:900 MHz
Part #:DOLCWIUHF-910
Pricing:
Contact for Pricing
Applications
Parking ManagementVehicle Access ControlAccess Control
Tags
uhfuhf long range readermini uhf readerdolcwiuhf-91026-bit wieganddiscontinued
• 30 foot read range
• 26-bit Wiegand output
• Waterproof, IP66 rated
• Reader supports side or overhead installation depending on model
• Works with multiple UHF credential formats
• Includes wiring guides, windshield mounting guidance, and tag placement guidance
• Part number/page identity: DOLCWIUHF-910
• Manual product family: TRANSMITTER SOLUTIONS Reader Model WBU-913 / WBU-913A / WBU-913B
• Operating frequency: manual 902-928 MHz FHSS (Europe 865.6-867.6 MHz); page/cutsheet simplify to 900 MHz
• Transmitter power: 0.5 to 1W
• Supply voltage: manual 10-25 VDC +5%/-1%; page/cutsheet 10-28VDC
• Communication interfaces: Wiegand 26 and RS232, default Wiegand 26
• Communication rate: 9600 bps
• Power consumption conflict: manual maximum 10W; page/cutsheet list 4W with idle 12VDC x 0.30A and active 12VDC x 1.0A
• Read distance conflict: manual family says WBU-913A is 5 meters and WBU-913B is 10 meters depending on model; page/cutsheet say 30 feet max
• Dimensions conflict: manual 200 x 200 x 40 mm with fixed holder; page/cutsheet 8.5 x 8.8 x 2 inches
• Weight: manual 1.5 kg
• Operating temperature: manual -20°C to +40°C; page/cutsheet 14°F to 185°F
• Storage temperature: manual -40°C to +70°C
• Package contents from manual: host with fixed holder, 12V/3A power adapter, 1.8 m power cord, RS232 cable, test tag ISO card, quick connector cable set
• Included support documents cover old/new wiring, Wiegand filter wiring, Pulse Mini wiring, tag placement, and special windshield mounting
• Live page image marks the product as discontinued, so status is set accordingly
Basic Information
Product Type:Card Reader
Model:DOLCWIUHF-910
SKU:DOLCWIUHF-910
Status:discontinued
In Stock:No
Wireless/RF Specifications
Frequency:900 MHz
Read Range:30 ft max
Wiegand Bits:26 bit
Power Specifications
Backup Battery:No
Physical Specifications
Dimensions:8.5 x 8.8 x 2 in
Weight:1.5 kg
IP Rating:IP66
Operating Temperature:14 to 185 F
Card Reader Specifications
Supported Card Types:UHF
Output Protocol:Wiegand 26
LED Indicator:No
Buzzer/Alarm:No
Lock Specifications
Lock Status Sensor:No
Current Draw:Idle 0.30A at 12VDC; Active 1.0A at 12VDC
Card Specifications
Waterproof:No
Documentation
Cutsheets
UHF Mini Cutsheet
Download the technical cutsheet
UHF Credentials Cut Sheet
Download the technical cutsheet
UHF Tag Placement
Download
Special Windshield Mounting Tips
Download
Dolphin UHF RFID Wiring Diagram Old
Download
UHF Mini Wiring Diagram New
Download
Wiegand Filter Wiring
Download
RFID Pulse Mini Wiring
Download
