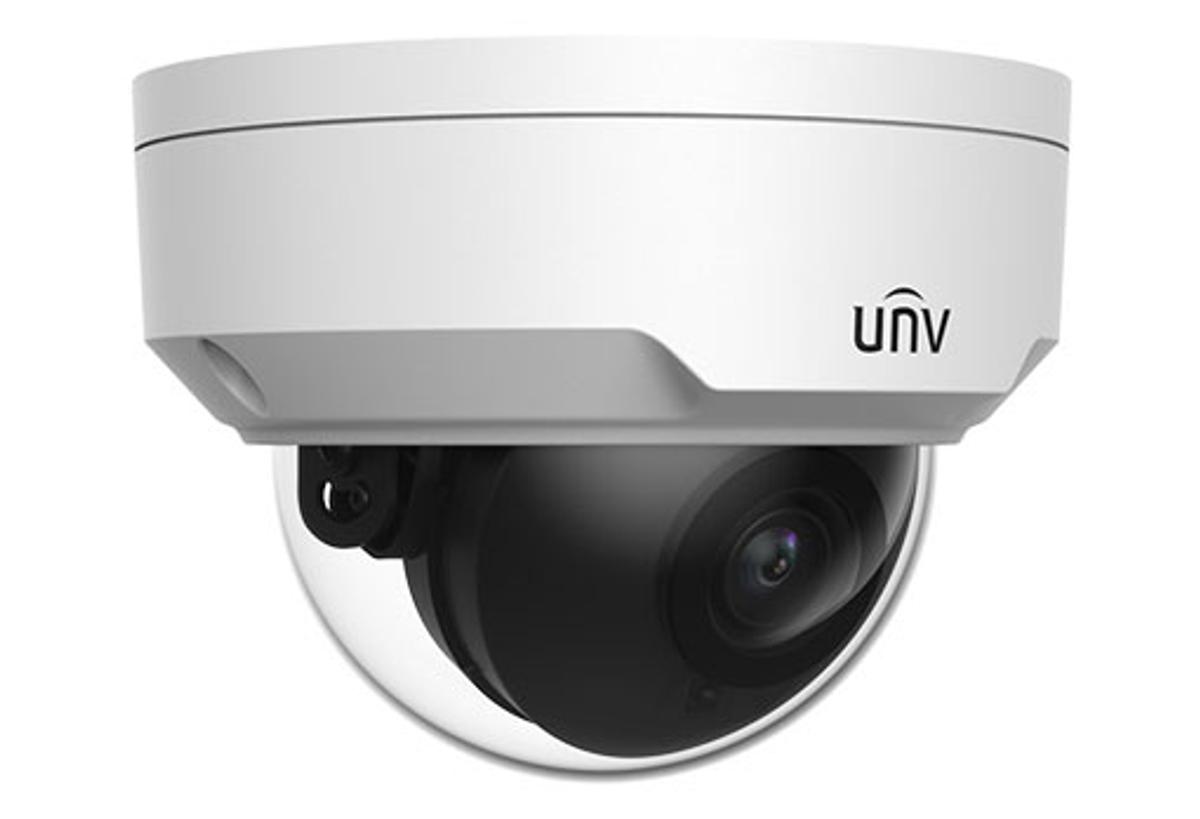

IR Fixed Dome Network Camera
5MP fixed dome network camera with LightHunter low-light imaging, intelligent intrusion prevention, 120dB true WDR, and IK10/IP67 protection.
Specifications
Resolution:5MP
IR Range:30 m (98 ft)
Part #:IPC3605SB-ADF16KM-I0
Pricing:
Contact for Pricing
Applications
CommercialSecurityVideo Surveillance
Tags
univiewsecurity cameranetwork camerafixed dome camerair cameraipc3605sb-adf16km-i0video surveillance
• High quality image with 5MP, 1/2.7 in CMOS sensor
• Multi-resolution output up to 5MP at 30/25fps
• Ultra 265, H.265, H.264, and MJPEG compression
• Intelligent perimeter protection with cross line, intrusion, enter area, and leave area detection
• Smart intrusion prevention with human, motor vehicle, and non-motor vehicle classification
• Intelligent people flow counting and crowd density monitoring
• LightHunter low-light imaging technology
• 120dB true WDR
• 9:16 Corridor Mode
• Audio: 1 in / 1 out
• Alarm: 1 in / 1 out
• Smart IR up to 30 m (98 ft)
• Supports up to 256 GB Micro SD card
• IK10 vandal resistance and IP67 weather protection
• Part number/model: IPC3605SB-ADF16KM-I0
• Product type: IR fixed dome network camera
• Resolution: 5MP
• Image sensor: 1/2.7 in CMOS
• Frame rates: 5MP (2880 x 1620) at 30/25fps; 4MP (2560 x 1440) at 30/25fps; 3MP (2304 x 1296) at 30/25fps; 2MP (1920 x 1080) at 30/25fps
• Compression: Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection includes cross line, intrusion, enter area, and leave area detection
• Target classification supports human, motor vehicle, and non-motor vehicle filtering to reduce false alarms
• People flow counting and crowd density monitoring supported
• Low-light imaging: LightHunter technology
• Wide dynamic range: 120dB true WDR
• Corridor mode: 9:16 supported
• Alarm I/O: 1 input / 1 output
• Audio I/O: 1 input / 1 output
• Smart IR distance: up to 30 m (98 ft)
• Local storage: supports up to 256 GB Micro SD card
• Protection ratings: IK10 and IP67
• Source note: no PDF manual or cutsheet was provided for this product, so structured data is based on the live product page
Basic Information
Product Type:Camera
Model:IPC3605SB-ADF16KM-I0
SKU:IPC3605SB-ADF16KM-I0
Status:active
In Stock:Yes
Camera & Display Specifications
Resolution:5MP
Image Sensor:1/2.7 in CMOS
Video Compression:Ultra 265, H.265, H.264, MJPEG
Frame Rate:5MP (2880 x 1620) at 30/25fps; 4MP (2560 x 1440) at 30/25fps; 3MP (2304 x 1296) at 30/25fps; 2MP (1920 x 1080) at 30/25fps
IR Range:30 m (98 ft)
Wide Dynamic Range:120dB true WDR
Audio I/O:1 in / 1 out
Alarm I/O:1 in / 1 out
Storage Capacity:Supports up to 256 GB Micro SD card
IK Rating:IK10
Physical Specifications
Mounting Type:Ceiling Mount
IP Rating:IP67
Lock Specifications
Lock Status Sensor:No
Card Specifications
Waterproof:No
