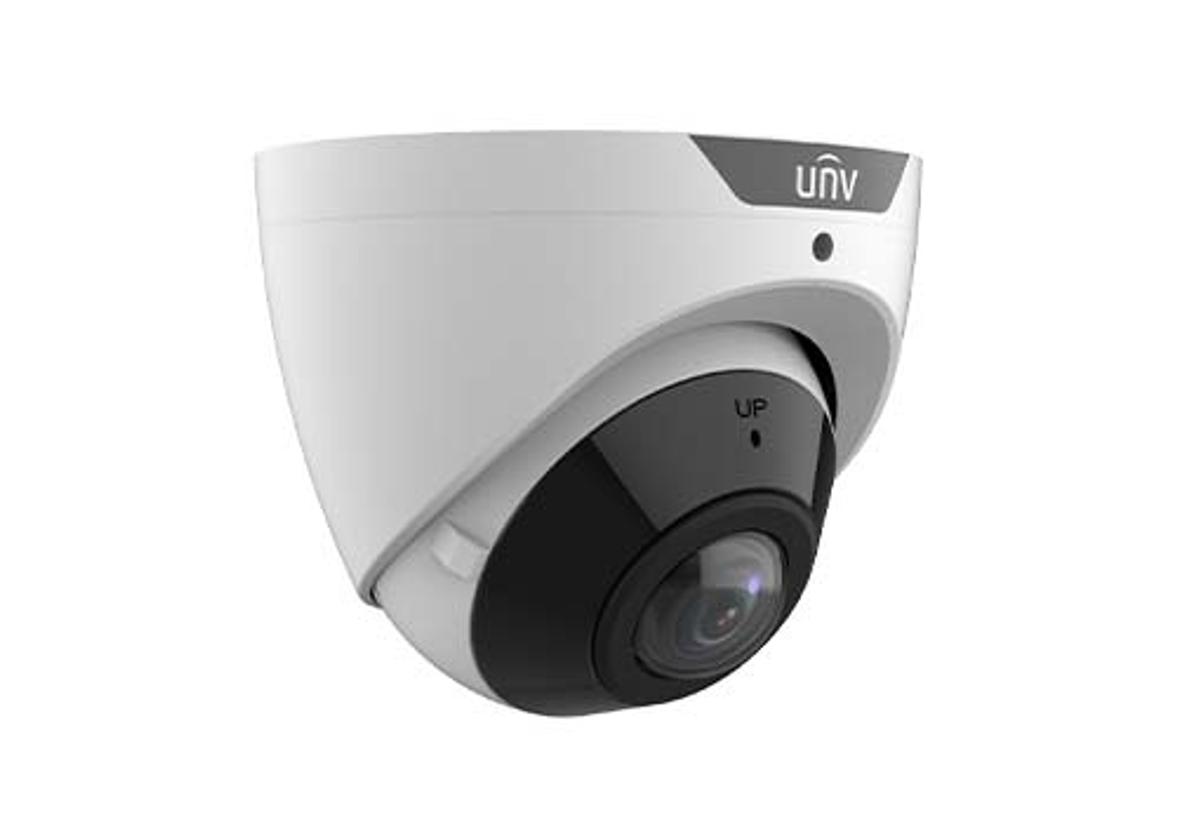

Wide Angle IR Fixed Eyeball Network Camera
5MP wide-angle fixed eyeball network camera with 180 degree horizontal viewing, dewarp control, true 120dB WDR, built-in mic, and IK10/IP67 protection.
Specifications
Resolution:5MP
IR Range:20 m (66 ft)
Part #:IPC3605SB-ADF16KM-I0
Pricing:
Contact for Pricing
Applications
CommercialSecurityVideo Surveillance
Tags
univiewsecurity cameranetwork cameraeyeball camerawide angle camerair cameraipc3605sb-adf16km-i0video surveillance
• High quality image with 5MP, 1/2.7 in CMOS sensor
• Multi-resolution output up to 5MP at 30/25fps
• Wide Angle technology provides a 180° horizontal viewing angle
• Dewarp level configurable from 1 to 9
• Ultra 265, H.265, H.264, and MJPEG compression
• Smart intrusion prevention with cross line, intrusion, enter area, and leave area detection
• Target classification reduces false alarms and focuses on human, motor vehicle, and non-motor vehicle events
• 120dB true WDR
• Built-in microphone
• Smart IR up to 20 m (66 ft)
• Supports up to 256 GB Micro SD card
• IP67 protection
• IK10 vandal resistance
• Part number/model: IPC3605SB-ADF16KM-I0
• Product type: wide angle IR fixed eyeball network camera
• Resolution: 5MP
• Image sensor: 1/2.7 in CMOS
• Frame rates: 5MP (2880 x 1620) at 30/25fps; 4MP (2560 x 1440) at 30/25fps; 3MP (2304 x 1296) at 30/25fps; 2MP (1920 x 1080) at 30/25fps
• Viewing angle: 180° horizontal using wide angle technology
• Dewarp level: configurable from 1 to 9
• Compression: Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention includes cross line, intrusion, enter area, and leave area detection
• Target classification supports human, motor vehicle, and non-motor vehicle filtering to reduce false alarms
• Wide dynamic range: 120dB true WDR
• Audio: built-in microphone
• Smart IR distance: up to 20 m (66 ft)
• Local storage: supports up to 256 GB Micro SD card
• Protection ratings: IP67 and IK10
• Source note: no PDF manual or cutsheet was provided for this product, so structured data is based on the live product page
Basic Information
Product Type:Camera
Model:IPC3605SB-ADF16KM-I0
SKU:IPC3605SB-ADF16KM-I0
Status:active
In Stock:Yes
Camera & Display Specifications
Resolution:5MP
Image Sensor:1/2.7 in CMOS
Video Compression:Ultra 265, H.265, H.264, MJPEG
Frame Rate:5MP (2880 x 1620) at 30/25fps; 4MP (2560 x 1440) at 30/25fps; 3MP (2304 x 1296) at 30/25fps; 2MP (1920 x 1080) at 30/25fps
IR Range:20 m (66 ft)
Wide Dynamic Range:120dB true WDR
Audio I/O:Built-in microphone
Storage Capacity:Supports up to 256 GB Micro SD card
IK Rating:IK10
Physical Specifications
Mounting Type:Ceiling Mount
IP Rating:IP67
LED Light Specifications
Viewing Angle:180°
Lock Specifications
Lock Status Sensor:No
Card Specifications
Waterproof:No
